Source : Point sources from arrays¶
Collections of point sources can be initialised through either a collection of arrays, or an astropy Table
[ ]:
import numpy as np
import astropy.table as table
from astropy import units as u
import scopesim
# how many stars
n = 200
# random coordinated in a 100 arcsec box
x, y = 100 * np.random.random(size=(2, n)) - 50
# All stars reference the Vega spectrum
ref = np.zeros(n)
# Each star is given a different weighting, i.e. magnitude
weight = 10**(-0.4*np.linspace(10, 20, n))
# Note: The Pyckles and SpeXtra libraries contain many more stellar and galactic spectra
vega = scopesim.source.source_templates.vega_spectrum(mag=20)
astropy.Table¶
[ ]:
tbl = table.Table(names=["x", "y", "ref", "weight"],
data= [x, y, ref, weight],
units=[u.arcsec, u.arcsec, None, None])
table_source = scopesim.Source(table=tbl, spectra=[vega])

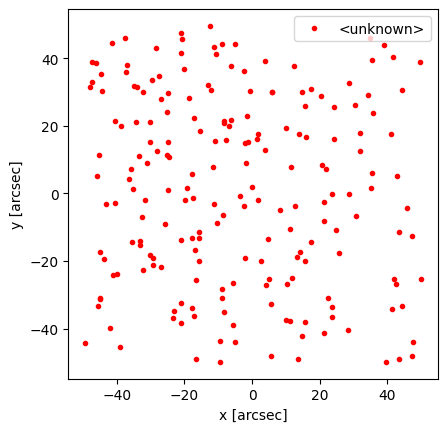

table_source.plot()
From loose arrays¶
[ ]:
point_source = scopesim.Source(spectra=[vega], x=x, y=y, ref=ref, weight=weight)

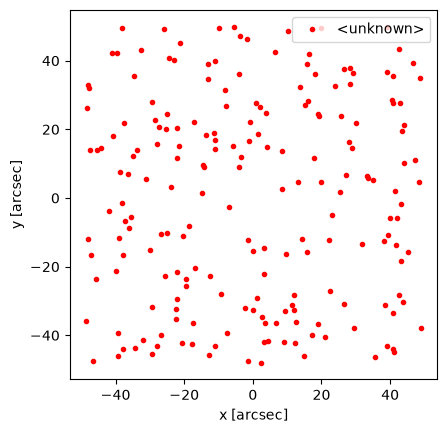

point_source.plot()
