Getting started

Note: For instrument specific guides, please see the IRDB

A basic simulation would look something like this:

[ ]:

from matplotlib import pyplot as plt
from matplotlib.colors import LogNorm

import scopesim as sim
from scopesim.source import source_templates as st

src = st.star_field(n=100,
                    mmax=15,      # [mag]
                    mmin=20,
                    width=200)    # [arcsec]

opt = sim.load_example_optical_train()
opt.cmds["!OBS.dit"] = 60         # [s]
opt.cmds["!OBS.ndit"] = 10

opt.observe(src)
hdulist = opt.readout()[0]

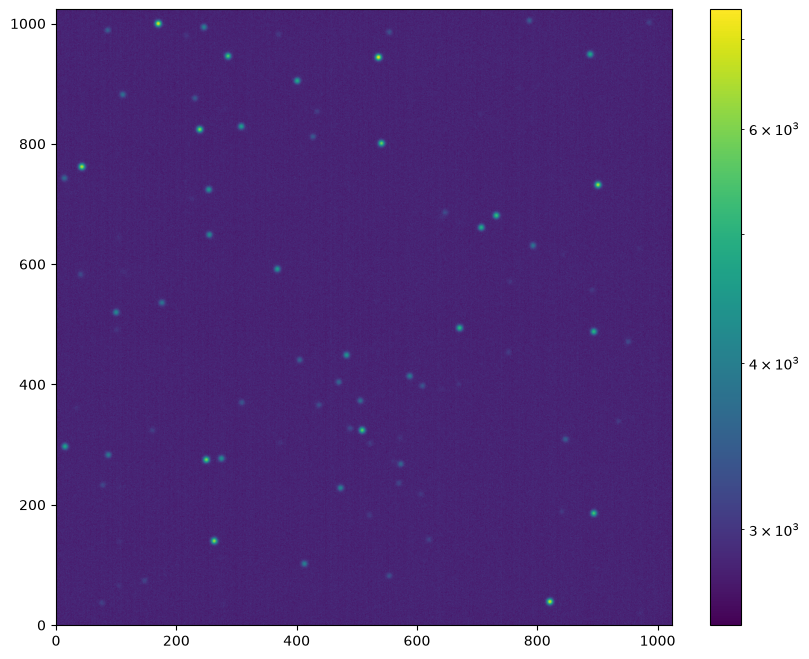

plt.figure(figsize=(10,8))
plt.imshow(hdulist[1].data, norm=LogNorm(vmin=1))
plt.colorbar()

Code breakdown

Let’s break this down a bit.

There are three major components of any simulation workflow:

  1. the target description,

  2. the telescope/instrument model, and

  3. the observation.

For the target description we are using the ScopeSim internal template functions from scopesim.source.source_templates, however many more dedicated science related templates are available in the external python package ScopeSim-Templates

Here we create a field of 100 A0V stars with Vega magnitudes between V=15 and V=20 within a box of 200 arcsec:

[ ]:

src = st.star_field(n=100,
                    mmax=15,      # [mag]
                    mmin=20,
                    width=200)    # [arcsec]

Next we load the sample optical train object from ScopeSim.

Normally we will want to use an actual instrument. Dedicated documentation for real telescope+instrument systems can be found in the documentation sections of the individual instruments in the Instrument Reference Database (IRDB) documentation

For real instruments loading the optical system generally follows a different pattern:

cmd = sim.UserCommands(use_instrument="instrument_name", set_modes=["mode_1", "mode_2"])
opt = sim.OpticalTrain(cmds)

Once we have loaded the instrument, we can set the observation parameters by accessing the internal commands dictionary:

[ ]:

opt = sim.load_example_optical_train(set_modes=["imaging"])
opt.cmds["!OBS.dit"] = 60         # [s]
opt.cmds["!OBS.ndit"] = 10

Finally we observe the target source and readout the detectors.

What is returned (hdulist) is an astropy.fits.HDUList object which can be saved to disk in the standard way, or manipulated in a python session.

[ ]:

opt.observe(src)
hdulist = opt.readout()[0]

Tips and tricks

Focal plane images

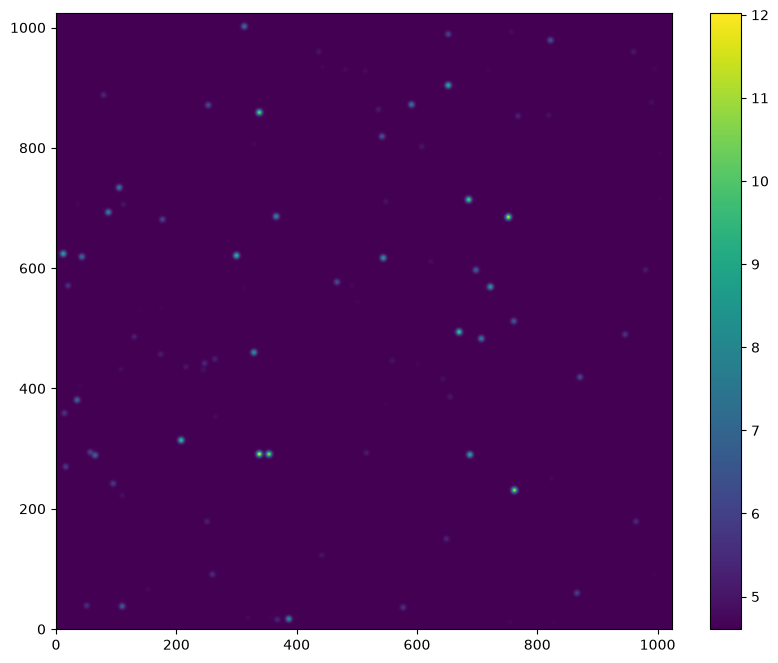

Intermediate frames of the focal plane image without the noise proerties can be accessed by looking inside the optical train object and accessing the first image plane:

[ ]:

noiseless_image = opt.image_planes[0].data

Turning optical effects on or off

All effects modelled by the optical train can be listed with the .effects attribute:

[ ]:

opt.effects

These can be turned on or off by using their name and the .include attribute:

[ ]:

opt["detector_linearity"].include = False

Listing available modes and filters

The list of observing modes can be found by using the .modes attribute of the commands objects:

[ ]:

opt.cmds.modes

The names of included filters can be found in the filter effect. Use the name of the filter object from the table above to list these:

[ ]:

opt["filter_wheel"].filters

Setting observation sequence

Although this could be different for some instruments, most instruments use the exptime = ndit * dit format. nditand dit are generally accessible in the top level !OBS dictionary of the command object in the optical train.

[ ]:

opt.cmds["!OBS.dit"] = 60         # [s]
opt.cmds["!OBS.ndit"] = 10

Listing and changing simulation parameters

The command dictionary inside the optical system contains all the necessary paramters.

[ ]:

opt.cmds

The command object is a series of nested dictionaries that can be accessed using the !-string format:

opt.cmds["!<alias>.<param>"]
opt.cmds["!<alias>.<sub_dict>.<param>"]

For example, setting the atmospheric background level is achieved thusly:

[ ]:

opt.cmds["!ATMO.background.filter_name"] = "K"
opt.cmds["!ATMO.background.value"] = 13.6

More information

For more information on how to use ScopeSim be see:
